SewSwitch 30

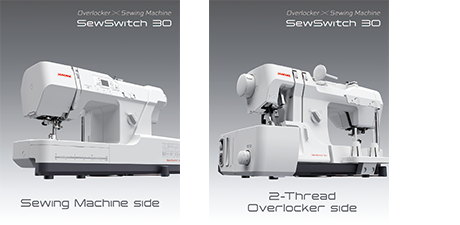

SewSwitch 30 equipped with the basic “Two-in-one sewing machine for home use” operability and functionality.

Combing a sewing machine and 2-thread overlocker into one unit
SewSwitch 30 equipped with the basic “Two-in-one sewing machine for home use” operability and functionality.
To switch between the ordinary sewing and overlock side, turn the turntable lever on the front of the sewing machine.
This is a killer feature, allowing you to enjoy two sewing machines in a space-saving design.

Sewing machine side

Number of stitches
The SewSwitch 30 features a selection of practical stitches for garment sewing and other sewing projects.
One step buttonhole
Drop your button into the sliding gauge and the foot makes the buttonhole the right size every time. Choose from 3 styles buttonhole design to suit your needs.
Built-in Needle Threader
The built-in needle threader allows for quick and easy threading through the eye of the needle.
Work space
The workspace width is 158.5 mm.

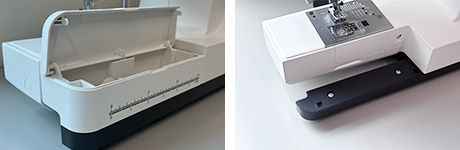

Accessory case (Extension table)
Open the front cover of the extension table to store frequently used accessories in an easy-to-reach location.
Detach the extension table to convert the machine into a free-arm sewing, ideal for cuffs, bags, and other tubular items.

2-Thread Overlocker side

Designed thread guide

Patent Pending

Effortlessly thread the lower looper and needle thread using the intuitive thread guide, you’ll quickly get used to it.
Foot for smooth and comfortable sewing
  • Rolled hem stitch performance
As the tip is wider and the stitches can be guided properly, it enables stable and beautiful rolled hem stitch.
  • Stopper

The added stopper, which reducing presser foot tilting, works effectively for thicker fabrics.

  • Needle drop position guide
The extended needle drop position guide improves visibility, allowing for more comfortable sewing.
  • Foot structure
①Gentle curve at the tip of the presser foot ensures smooth bi-level sewing and an easy start.
②Grooves under the foot help prevent fabric slippage.
Needle UP stop
The needle automatically stops in the up position when sewing is stopped.
This allows fabric to be inserted and removed more easily, making the start and end of sewing smoother and more convenient.
To deactivate or activate the upper knife
When sewing without cutting the fabric, simply turn the upper knife release. The SewSwitch 30 is equipped with the same knob as the Sailing Line series.
Lower Looper Threader
Many users find lower looper threading difficult, so the SewSwitch 30 is equipped with the same mechanism as the Sailing Line series.
Threading is easier than with conventional models, helping improve efficiency.
Rubber Feet
Comes equipped with rubber feet, specially designed to reduce vibration and noise, providing a smoother, quieter, and more stable sewing experience even at high speeds.
Machine Size (W x H x D)
530 × 301 × 281 (mm) *Included the stitch length dial, bobbin winder spindle and turnable lever
Workspace
158.5 ×110 (mm)
Machine weight
12.5 kg
Number of built-in stitches
30
Number of buttonholes
3
Number of needles
1
Number of threads
2
Stitch length adjustment
1.0~5.0 (mm)
Cutting width
Using left needle: 5.3~7.3 (mm) /Not using left needle: 3.1~5.1 (mm)
Presser foot change
Snap-On
Upper knife release
Knob type
Quick change rolled hem
Dial type
Maximum zigzag width: 7 mm
Maximum stitch length: 5 mm
2-step Needle Threader
Memorized needle Up/Down
7-piece feed dog
Drop feed dog
Maximum sewing speed: 820 spm
Thread tension control (Manual)
1 white LED in 1 location
LED 2-digit number
Free arm sewing
Zigzag foot A
Zipper foot E
Satin stitch foot F
Blind hemming foot G
Automatic buttonhole foot R
Spool holder
(Large / Small)
Felt cusion
Spool supporter
Needle set for sewing machine side
Bobbin
Extra spool pin
Seam ripper
Lint brush
Screwdriver (Large)
for sewing machine side
Needle set for overlocker side
Net
Screwdriver (Small)
for overlocker side
Tweezers
Instruction book
Soft cover
Power supply cable
Foot control

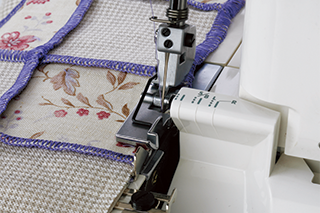

Cloth guide
As its name suggests, this guide helps keep your seams straight as you sew.
Especially useful on flatlock seams and other seams where the knife is lowered.

Part number: 202 525 008

* The actual installation may differ from the image shown.
