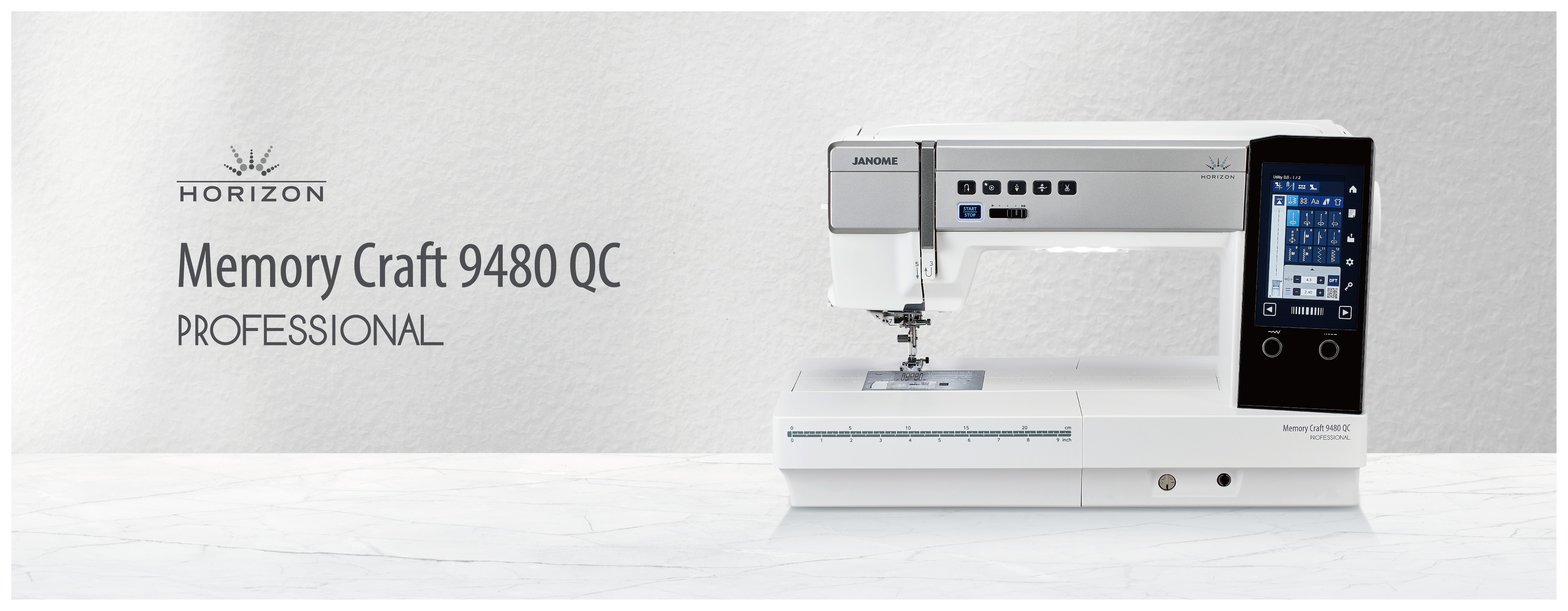

HORIZON Memory Craft 9480 QC PROFESSIONAL

The legacy of the Memory Craft Series continues with the HORIZON Memory Craft 9480QC PROFESSIONAL. HMC9480QCP offers A.S.R.® compatible with Ruler Work.

The HORIZON Memory Craft 9480QC PROFESSIONAL was awarded an IDEA2024 finalist!

 For more information about IDEA

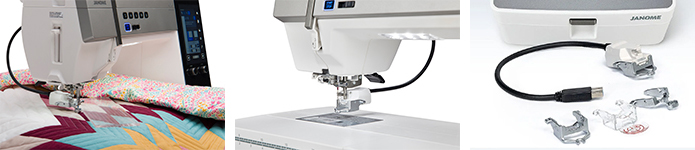

A.S.R.®

The HORIZON Memory Craft 9480 QC PROFESSIONAL is compatible with the A.S.R.® (Accurate Stitch Regulator) . Janome Accurate Stitch Regulator System includes four feet: closed-toe, open-toe, clear view, and the exclusive ruler work foot so that all of your free-motion needs are covered. With the added benefit of being able to set the sensitivity of the sensor; you can adjust the regulation as your skills build.

Large Workspace
Large sewing area with 280mm (11″) to the right of the needle. With a 120mm (4.9″) workspace height, you’ll complete any sewing project with ease.
Floating Mode


Available on the HORIZON Memory Craft 9480 QC PROFESSIONAL, floating mode adjusts the presser foot pressure and height without affecting tension. This is especially useful when sewing delicate and tricky fabrics which tend to shift.

Automatic Presser Foot Lift


The presser foot lift on the machine automatically lifts the presser foot after a thread cut. This feature can be set to raise at the end of any seam, with the needle in the down position for easy pivoting.

AcuSpark2

The AcuSpark2 App provides machine learning & support. Simply scan the QR code on the screen of your machine with the app to see information about the stitch, recommended presser feet, adjustment tips, and more.
Advanced Touchscreen


Enjoy the impeccable clarity and vibrancy of graphics and colors on the 5″ high definition color touchscreen, giving you a premium sewing experience. The screen is thoughtfully elevated and angled to ensure better visibility and a more comfortable sewing experience.
In Setting Mode you can customize the screen colors and functions to suit your personal style.

Superior Needle Threader 2


Threading could not be easier. Set your thread, push the lever, release, and sew. The Superior Needle Threader 2’s advanced design feeds the thread through the eye of the needle.

Encoder Dials
Effortlessly modify stitch length and width with the simple, smooth rotation of the applicable encoder. This enables rapid stitch editing, whether it involves adjusting stitch width and length on the fly during sewing, adapting stitch settings prior to sewing commencement. Make piecing easier by honing needle positions for a scant quarter inch and save as a favorite stitch. Alternatively, you can adjust the stitch settings directly on screen.
Retractable Sewing Light


The retractable sewing light and nine bright LED lamps are everything you need for a shadow-free workspace. The retractable sewing light pulls out to give direct light in the needle area, and the nine LEDs illuminate the bed area.

Mirage Stitch


Use mirage stitches to add an interesting design element to your project. These unique stitches offer a satin look in a variety of shapes with spaces between each motif, making the stitches appear to float on the fabric! Janome mirage stitches are infinitely customizable with separate tension and stitch length settings for both the hidden connecting jump stitches and the main satin stitch. This effect can be used on either one or two pieces of fabric.

One Step Needle Plate Conversion


The one step plate converter allows for no screws or tools. Simply push the lever to release the plate and snap a new one in place.

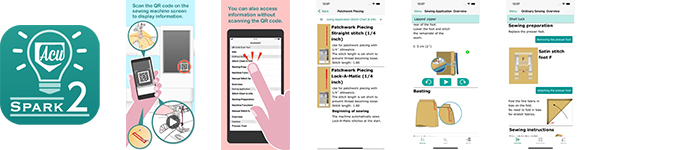

AcuSpark2 is an app that explains how to use the sewing machine and provides useful tips.
Read the QR code displayed on the sewing machine screen with AcuSpark2 and all your questions will be answered.
The app acts as a concierge, offering support and inspiring new ideas.

Please see below for further information.

AcuSpark2

You can design and create your own stitch patterns with “StitchComposer”. These original stitches can be sewn on the sewing machine in the same way as other built-in stitches.

For futher information

Machine size (W x H x D)
535 × 326 × 243 (mm)
Work space
280 × 120 (mm)
Machine weight
13.5 kg
Number of built-in stitches
400
Number of buttonholes
10 sensor, 1 Automatic
Number of monogramming stitches
3 fonts (block/script/broadway) and Japanese
Stitch length / width adjusting dials
Maximum zigzag width: 9 mm
Maximum stitch length: 5 mm
Superior Needle Threader 2
Machine languages (16 languages)
AcuFeed System (Manual)
Memorized needle Up/Down
Knee lifter
7-piece feed dog
Drop feed dog
One-touch type
needle plate conversion
Professional grade needle plate HP
Automatic thread cutter
Bobbin winding plate with cutter
Easy set bobbin
Maximum sewing speed: 1,060 spm
Independing bobbin winding motor
Thread tension control (Automatic)
Bobbin thread sensor
Automatic presser foot lift
Automatic foot pressure adjustment
Automatic pivot
9 white LEDs in 4 locations
5" color LCD touch panel
USB port
Memory capability
Tapering function
Favorite stitch adjustment
Sewing applications
Ruler work mode
Variable Zigzag for FMQ
A.S.R.®
Floating mode
Mirage stitch
Direct select stitch chart
StitchComposer (PC Software)
AcuSpark2 (Mobile App)
Zigzag foot A
Over casting foot M
Satin stitch foot F
Blind hemming foot G
Zipper foot E
1/4˝ seam foot O
1/4˝ seam foot O (without guide)
Automatic buttonhole foot R
Stabilizer plate
Rolled hem foot D
Open-toe satin stitch foot F2
Darning foot PD-H
Darning foot PD-H (open-toe)
Professional grade foot HP
Free motion quilting
closed-toe foot QC
Free motion quilting
open-toe foot QO
Free motion quilting zigzag foot QV
Variable zigzag open-toe foot QZ
Ruler work foot QR
Button sewing foot T
Button shank plate
Dual feed holder (twin)
Dual feed foot AD (twin)
Dual feed professional grade foot
HP2
A.S.R.® *
Bobbin
Needle set
Lint brush
Seam ripper
Quilting guide bar
Screwdriver
Spool holder
(Large / Small / Special)
Extra spool pin
Knee lifter
Touch panel stylus
Needle plate
Straight stitch needle plate
Professional grade needle plate HP
Cloth guide
Extra wide table
Semi-hard fabric cover
Accessory case
Instruction book
Power supply cable
Threading guide sticker
Foot control
Thread cutter switch

* May be an optional item depending on your region.

Spool stand
The two pins spool stand attaches easily to the handle of your machine.
Part number: 869 400 908
