Memory Craft 500E

The Memory Craft 500E is an embroidery-only model with a maximum embroidery size of 200 x 280 mm.

Maximum embroidery size: 200 x 280mm


The maximum embroidery size is 200 × 280 mm.
Now designers can create projects to reflect their personal sense of style with the Memory Craft 500E.

160 Built-in embroidery designs

The built-in 160 embroidery designs some of which are floral alphabets, border designs, and geometric designs.
Your possibilities are also expanded by 3 included fonts allowing you creative space for your projects.

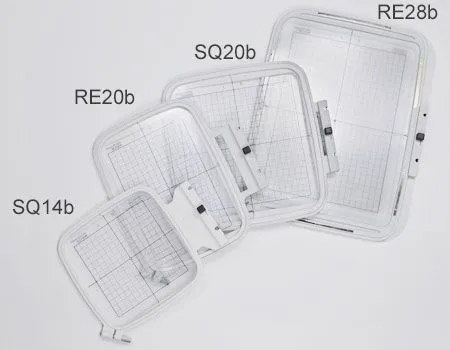

Various hoops

RE28b, SQ20b, RE20b and SQ14b hoops are available.
* RE20b and SQ14b hoops are optional items.

Superior needle threader

Janome’s superior needle threader offers you to easy threading with one-action.

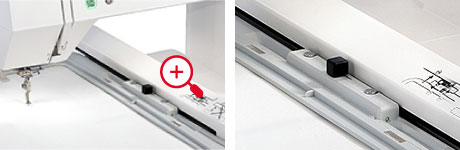

Attaching embroidery hoops

Sliding the lever allows the embroidery hoop to be attached and removed easily.

5″ full color LCD touchscreen

It features a large, vibrant 5-inch touch panel for outstanding ease of use.

Designed foot for embroidery

Made of metal for excellent durability.
The small openings in the presser foot and needle plate also allow for stable embroidery.

Bobbin thread sensor

The machine automatically detects the amount of bobbin thread. When it runs low, it stops automatically, allowing for stress-free operation.

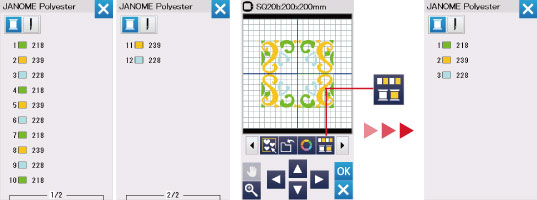

Color grouping

When combining duplicated patterns, you can reduce the number of color sections with color grouping.

Bright LED lights

Five LED lamps brightly illuminate the work area.

♦ Specifications are subject to change without notice, and standard accessories may differ in some countries or regions.

Memory Craft 500E has 160 embroidery designs grouped into 11 categories, including border designs, quilting designs and so much more!

  • Embroidery samples

All the built-in embroidery designs

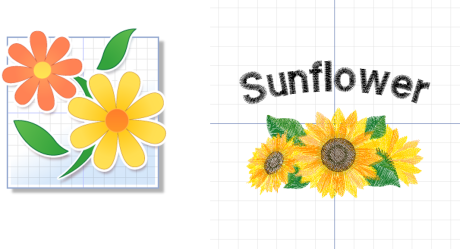

You can easily create the embroidery designs by placing an embroidery pattern or adding monograms to the hoop area with EmbroideryEditor.

Editing operations similar to those of a sewing machine can be performed on a PC.

For further information



Machine Size (W x H x D)
566 × 335 × 462 (mm) *Included the handwheel
Maximum embroidery size
200 × 280 (mm)
Machine weight
11.0 kg
Number of embroidery designs
160
Number of monogramming
English 3 fonts and Russian 3 fonts
Superior needle threader
Machine languages (14 languages)
Automatic thread cutter
Bobbin winding plate with cutter
Easy set bobbin
Automatic thread tension control
Bobbin Sensor
5 white LEDs in 3 locations
5" color LCD touch panel
USB port
PC direct link
EmbroideryEditor (PC Software)
Embroidery editing
Memory storage
Maximum embroiderying speed:
860 spm
Pattern tracing
Jump thread trimming
Auto return post thread break
Adjustable speed while embroidering
Embroidery couching
Embroidery foot P
Needle set
Spool holder
(Large / Small / Special)
Extra spool pin
Bobbin
Screwdriver
Screwdriver key
Lint brush
Touch panel stylus
Scissors
Bobbin holder cleaner
Special bobbin holder for Embroidery
Needle plate
Embroidery hoop RE28b
and anti-slipping sticker
Embroidery hoop SQ20b
Magnetic clamps
Instruction book
Quick reference guide
Soft cover
USB cable
Power supply cable
Extra wide table
Embroidery hoop
  • RE20b hoop (Embroidery size: 140 x 200 mm)

Part number: 864 405 001

  • SQ14b hoop (Embroidery size: 140 x 140 mm)

Part number: 864 406 002

  • SQ10b hoop (Embroidery size: 100 x 100 mm)

Part number: 864 438 003

  • RE10b hoop (Embroidery size: 100 x 40 mm)

Part number: 864 407 003

Embroidery couching foot set
Part number: 202 316 004
Enjoy embellishing your work with cords and yarns in the embroidery mode.
