Memory Craft 550E

Open new possibilities with the Memory Craft 550E. The maximum embroidery size is 200 x 360 mm.

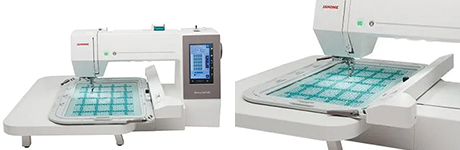

Maximum embroidery size: 200 x 360mm

With a maximum embroidery size of 200 × 360 mm, dynamic embroidery designs are possible.
We’ve even added an extra wide table to ensure that your embroidery projects are always properly supported.

180 Built-in embroidery designs

The built-in 180 embroidery designs some of which are In-The- Hoop designs, wedding designs and sashiko designs.
You’ll find your favorite design.

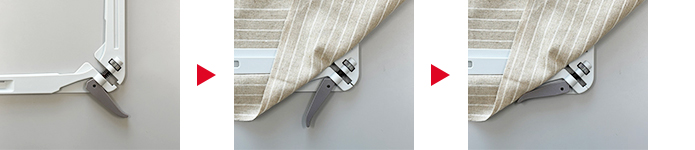

Designed hoop clamp on RE36b hoop


JANOME’s patent! *
Even large fabrics can be easily and securely held in place with a lever.

Superior needle threader with thread guide 7


JANOME’s patent! **
You do not need to pay attention to the slit anymore!
Simply draw the thread through thread guide 7 across the face plate from right to left.

Attaching embroidery hoops

Sliding the lever allows the embroidery hoop to be attached and removed easily.

5″ full color LCD touchscreen

It features a large, vibrant 5-inch touch panel for outstanding ease of use.

Designed foot for embroidery

Made of metal for excellent durability.
The small openings in the presser foot and needle plate also allow for stable embroidery.

Bobbin thread sensor

The machine automatically detects the amount of bobbin thread. When it runs low, it stops automatically, allowing for stress-free operation.

Color grouping

When combining duplicated patterns, you can reduce the number of color sections with color grouping.

Bright LED lights

Five LED lamps brightly illuminate the work area.

*   US11390974 B2, AU2020202958 B2, etc.
** US11639570 B2, AU2019316315 B2, etc.
♦ Specifications are subject to change without notice, and standard accessories may differ in some countries or regions.

Memory Craft 550E has 180 embroidery designs grouped into 14 categories, including In-The-Hoop projects, appliqué and so much more!

  • Embroidery samples

All the built-in embroidery designs

You can easily create the embroidery designs by placing an embroidery pattern or adding monograms to the hoop area with EmbroideryEditor.

Editing operations similar to those of a sewing machine can be performed on a PC.

For further information



Machine Size (W x H x D)
566 × 335 × 532 (mm)
Maximum embroidery size
200 × 360
Machine weight
11.5 kg
Number of embroidery designs
180
Number of monogramming designs
English: 3, Cyrillic: 3
Superior needle threader
with thread guide 7
Machine languages (14 languages)
Automatic thread cutter
Bobbin winding plate with cutter
Easy set bobbin
Automatic thread tension control
Bobbin Sensor
5 white LEDs in 3 locations
5" color LCD touch panel
USB port
PC direct link
EmbroideryEditor (PC Software)
Embroidery editing
Memory storage
Maximum embroiderying speed:
860 spm
Pattern tracing
Jump thread trimming
Auto return post thread break
Adjustable speed while embroidering
Embroidery couching
Embroidery foot P
Needle set
Spool holder
(Large / Small / Special)
Extra spool pin
Bobbin
Screwdriver
Screwdriver key
Lint brush
Touch panel stylus
Scissors
Bobbin holder cleaner
Special bobbin holder for Embroidery
Needle plate
Embroidery hoop RE36b
and anti-slipping sticker
Embroidery hoop RE20b
Embroidery hoop SQ20b
Embroidery hoop SQ14b
Magnetic clamps
Instruction book
Quick reference guide
Soft cover
USB cable
Power supply cable
Extra wide table
Embroidery hoop
  • SQ10b hoop (Embroidery size: 100 x 100 mm)

Part number: 864 438 003

  • RE10b hoop (Embroidery size: 100 x 40 mm)

Part number: 864 407 003

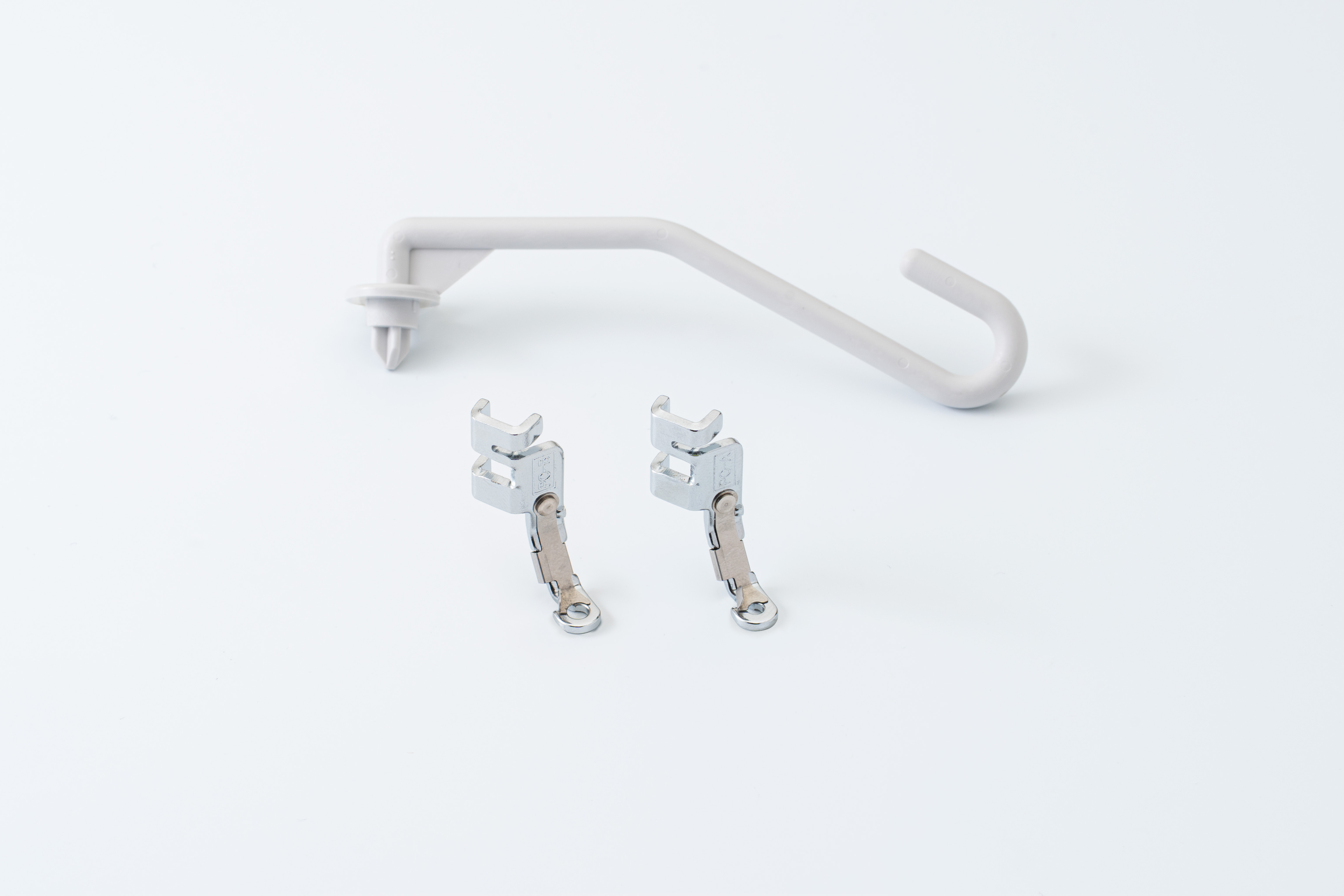

Embroidery couching foot set
Part number: 202 316 004
Enjoy embellishing your work with cords and yarns in the embroidery mode.
